Cored Holes

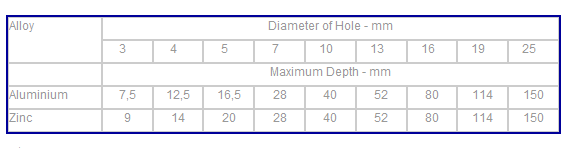

Optimum greatest depth of cored holes as related to diameter is shown in the table. The values shown for hole depths are subject to the draft requirements.
*For cores larger than 25.4 mm in diameter the diameter depth shall be 1:6.
Note – The depths shown are not applicable under conditions where small diameter cores are widely spaced and, by design are subject to full shrinkage stress
